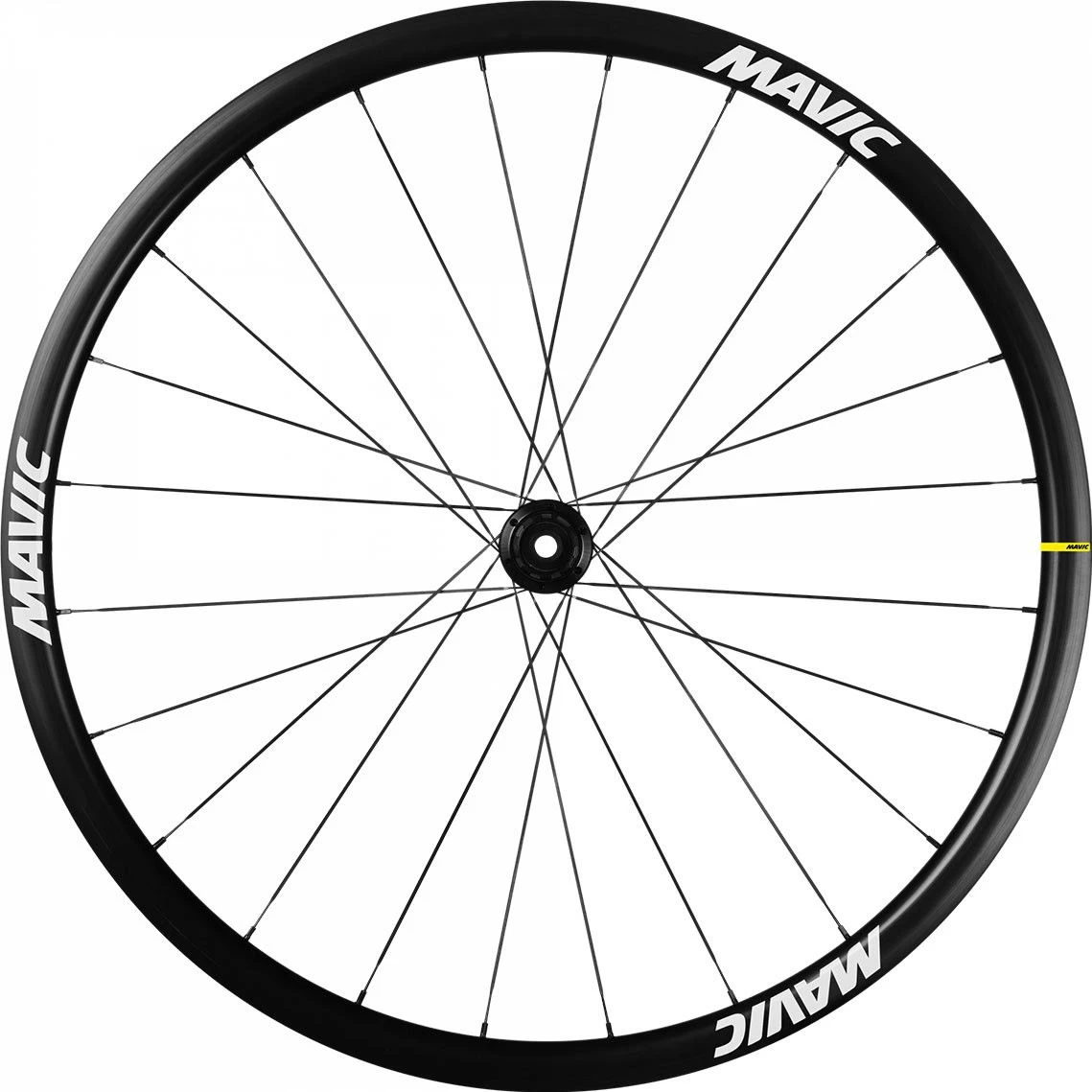

Mavic Ksyrium 30 Disc 700 Mm Rear Wheel | 12×142 Mm | Center Lock | 2022

The Mavic Ksyrium 30 Disc is the perfect entry-level wheel for top-level racing performance. This all-new UST Road Tubeless system offers a smoother ride, improves puncture resistance and makes climbs and acceleration easier. By removing the inner tube, Mavic has also removed friction, which reduces rolling resistance. You will therefore drive faster while spending less energy.

The 30mm high rim improves aerodynamics and crosswind stability. The alloy rim benefits from Mavic’s unrivaled experience in creating light and strong rim profiles. To achieve this result, the rim wall thickness has been carefully adjusted to achieve the perfect balance between strength, strength and lightness. The elliptical straight spokes are fixed on the Infinity hub platform: the optimal balance of spoke tension guarantees perfect rigidity and great durability, with a single spoke length common to both wheels. Instant Drive 360 freehub system ratchets ensure quick engagement and low friction.

The + product:

• Lightweight and aerodynamic rim : profile 30 mm high. Optimized rim wall thickness. Welded rim.
• Dynamic and agile : narrow spokes. Infinity hub platform. ID360 freewheel body.
• UST Tubeless Technology : Updated tubeless technology lets you ride faster and smoother, while being easy to fit and maintain. Optimized UST rim bridge profile. Durable and perfectly sealed rim tape system.

Details:

Use :

• ASTM Category 2: Roads and paths, jumps from a height of less than 15 cm.
• To optimize the longevity of the wheels, Mavic recommends that the maximum weight supported by the wheels does not exceed 120 kg (bike weight included).
• Recommended tire widths: 25 to 32 mm.
• Max pressure : refer to the indications on the wheel and the tire. If they are different, choose the lowest.

Rim :

• Material: Maxtal.
• Height: 30 mm.
• Drilling: traditional.
• Specific profile for disc brake.
• Pneumatic: UST Tubeless and inner tube.
• Internal width: 19 mm.
• ETRTO size: 622 x 19TC.
• UST Tubeless technology.
• SUP welding technology.

Spokes :

• Material: steel.
• Shape: straight, flat, constricted.
• Nipples: steel, ABS.
• Number: 24 at the back.
• Shelving: crossed by 2, contactless.

Versions :

• Disc standard: Center Lock.

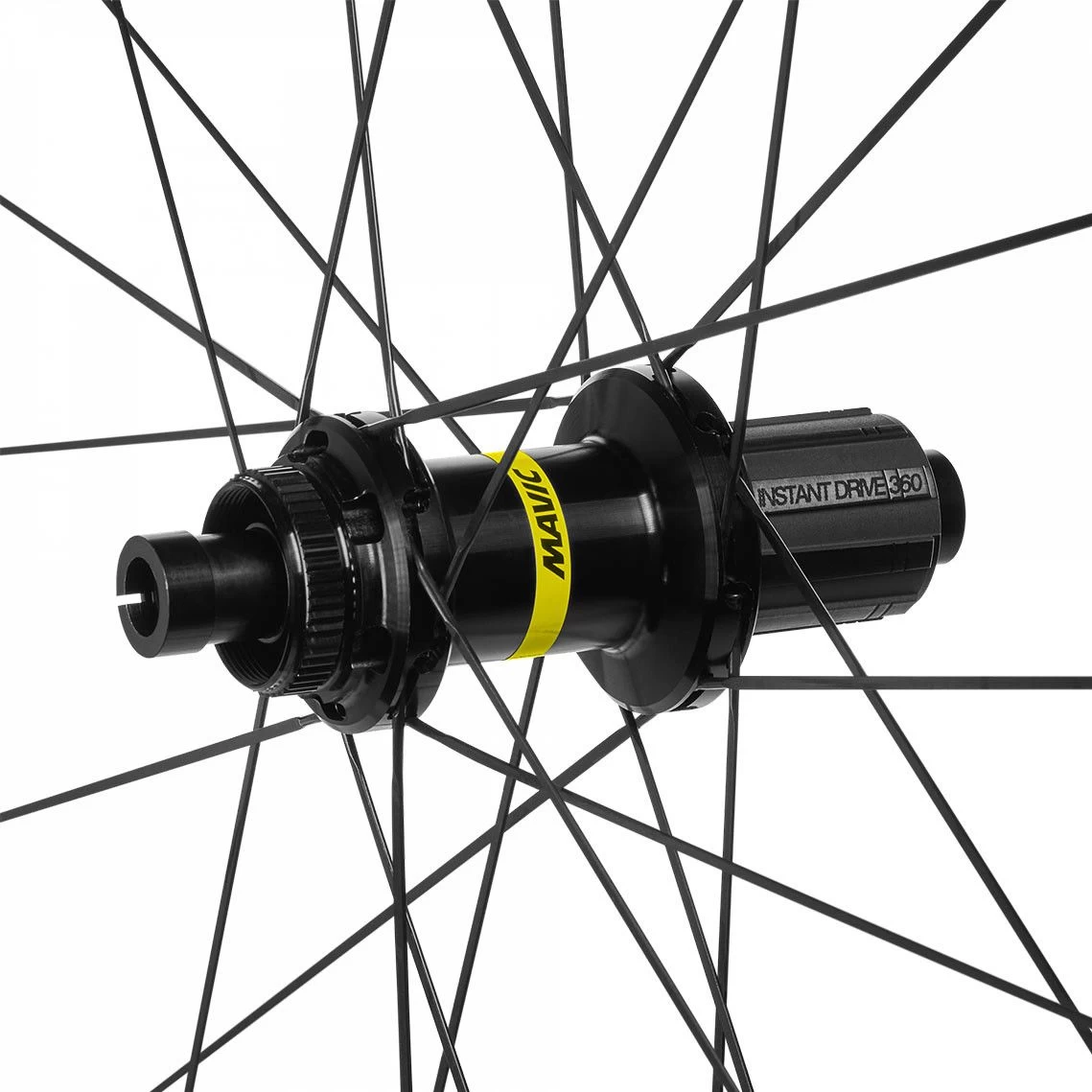

Hubs :

• Body: aluminum.
• Axle material: aluminum.
• Rear: compatible with quick release and 12 x 142 and 12 x 135 thru axle.
• Infinity hubs.
• Instant Drive 360 freewheel system.
• QRM Auto automatic bearing adjustment technology.

Delivered with :

• Quick release rear adapters for Instant Drive 360.
• UST valve and accessories.
• Pre-installed tubeless rim tape.
• User guide.

Technologies:

• Maxtal aluminum alloy : lightness and strength. A true Mavic exclusive, this specific aluminum alloy offers a better strength / weight ratio than the classic 6106 alloy.
• UST Tubeless technology : Universal Standard for Tubeless traction and control. Ready-to-drive tubeless system. The UST system improves traction, control and comfort while reducing inertia and the risk of punctures.
• Instant Drive 360 Freewheel System : The new Instant Drive 360 freewheel system is ultra light and efficient. An oversized non-contact rubber seal reduces friction to a minimum, and a wide choice of adapters makes it compatible with all types of frames and axles.
• QRM Auto Automatic Bearing Adjustment Technology : Mavic Auto Bearing Quality Our latest innovation. These cartridge bearings are obviously double sealed, with C3 internal clearance. Their preload is automatically adjusted to ensure, in the long term, a perfect rotation without any play.
• SUP welding technology : a more robust and smoother “Soudé Usiné Process” connection. After strapping, the rim fitting is arc welded. The welded joint is then machined to obtain a smooth finish.
