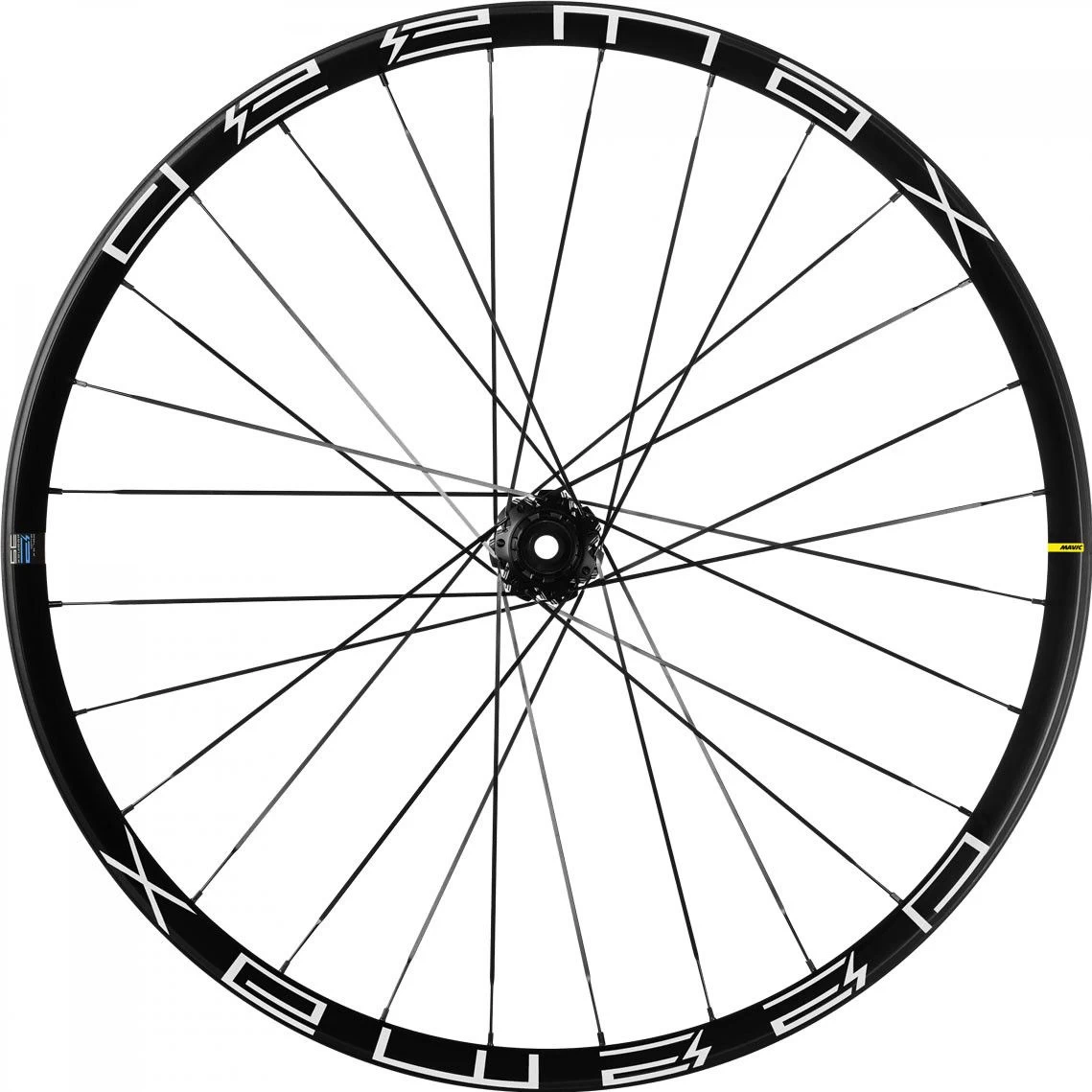

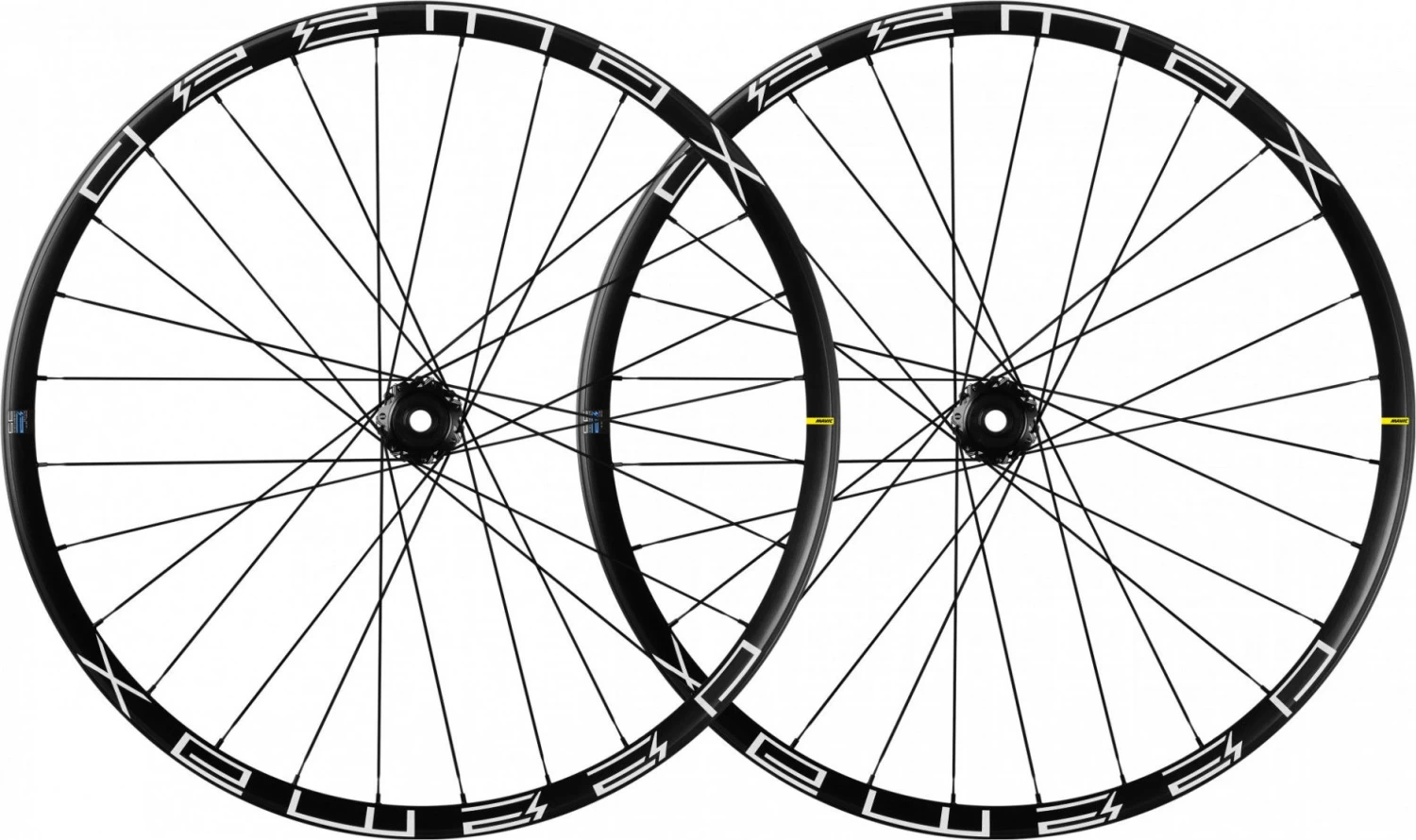

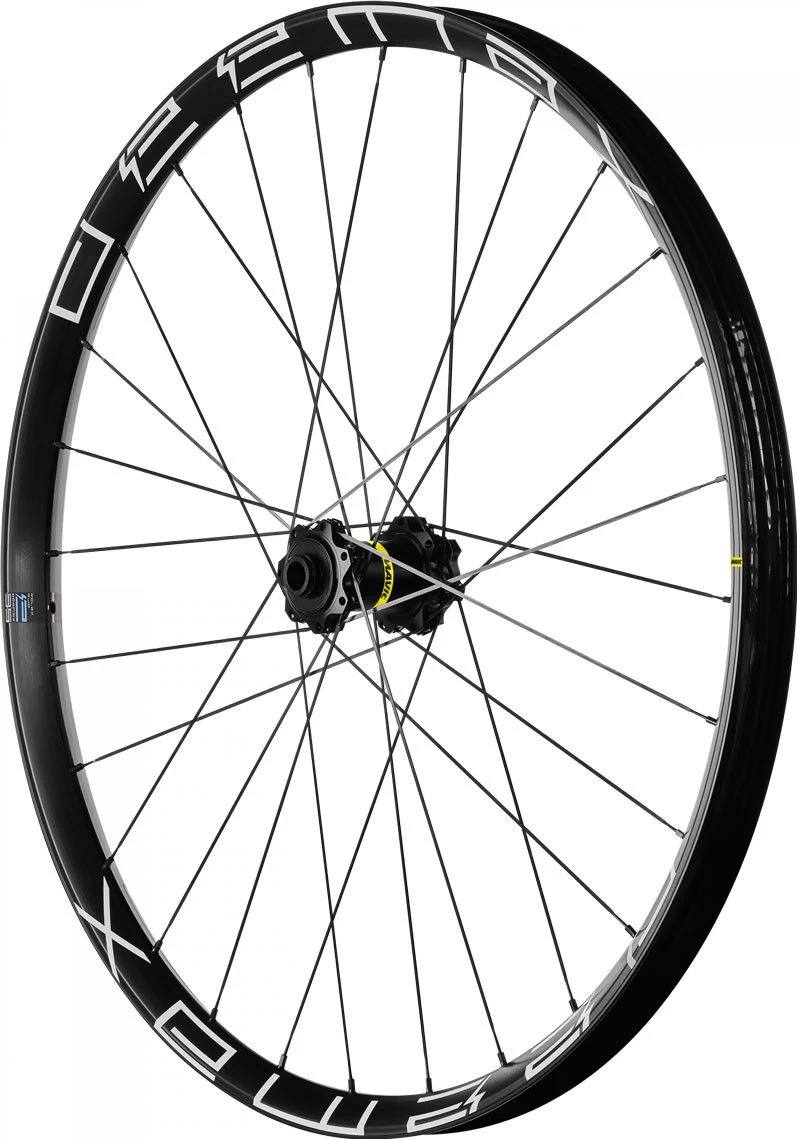

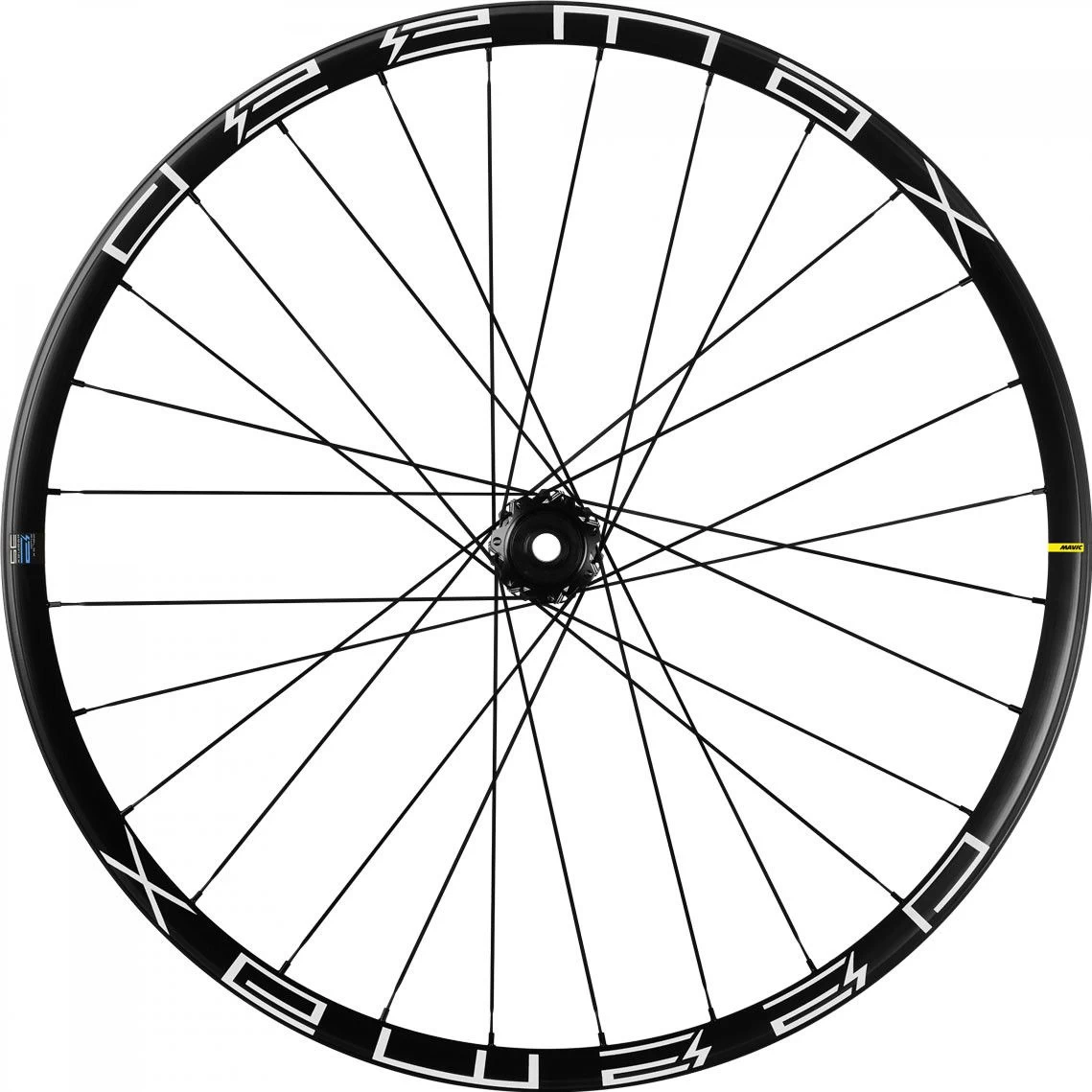

Mavic E-Deemax 35 27.5” Wheelset | Boost 15×110 – 12×148 Mm | 6 Bolts | 2022

For riders with electric bikes, the name E-Deemax has become a benchmark. This Mavic E-Deemax 35 27 wheelset does it justice by incorporating many of the features and technologies of its higher-level counterpart, at a much more affordable price. Among the key factors of its quality, the Pinch flat protection technology, against pinching punctures, works with rims having an increased contact surface between the tire and the rim, which greatly reduces the risk of lacerations and punctures. For even greater reliability, the wheelset is welded and features an internal width of 35mm Tubeless Ready which will allow you to reduce your tire pressure to gain traction and control.

Like all Mavic E-Deemax wheelsets, this 2022 version has been tested and validated in the laboratory and in the field with a maximum total load of 180 kg. The Instant Drive 360 freehub body mounted on the rear wheel guarantees, with its double ratchet system, quick engagement and unparalleled reliability.

The + product:

• Resistant and durable : welded rim and PFP pinch puncture protection for a reduced risk of punctures, an ultra-resistant rim profile and impeccable sealing.
• Reliable and specific design for e-bikes: 28 wide narrowed spokes, extremely reliable ID360 double ratchet freehub body and increased flange diameter.
• Tubeless Ready technology : tubeless rim profile and tubeless rim tape allowing tubeless tires to be fitted for better traction and reduced risk of punctures.

Details:

Use :

• ASTM Category 5: Gravity – Descent.

Rim :

• Drilling: traditional.
• Special electric bike rim profile.
• Pneumatic: UST Tubeless and inner tube.
• Internal width: 35 mm.
• ETRTO 27.5 “size: 584 x 35TC.
• Pinch Flat Protection rim wall (reduced risk of punctures and lacerations).
• Asymmetric rim.
• SUP welding technology.

Spokes :

• Shape: straight, flat.
• Number: 28 at the front and at the back.
• Shelving: front and rear crossed by 3.

Versions :

• Disc standard: 6 holes.
• Hub width: Boost only (110 front, 148 rear).

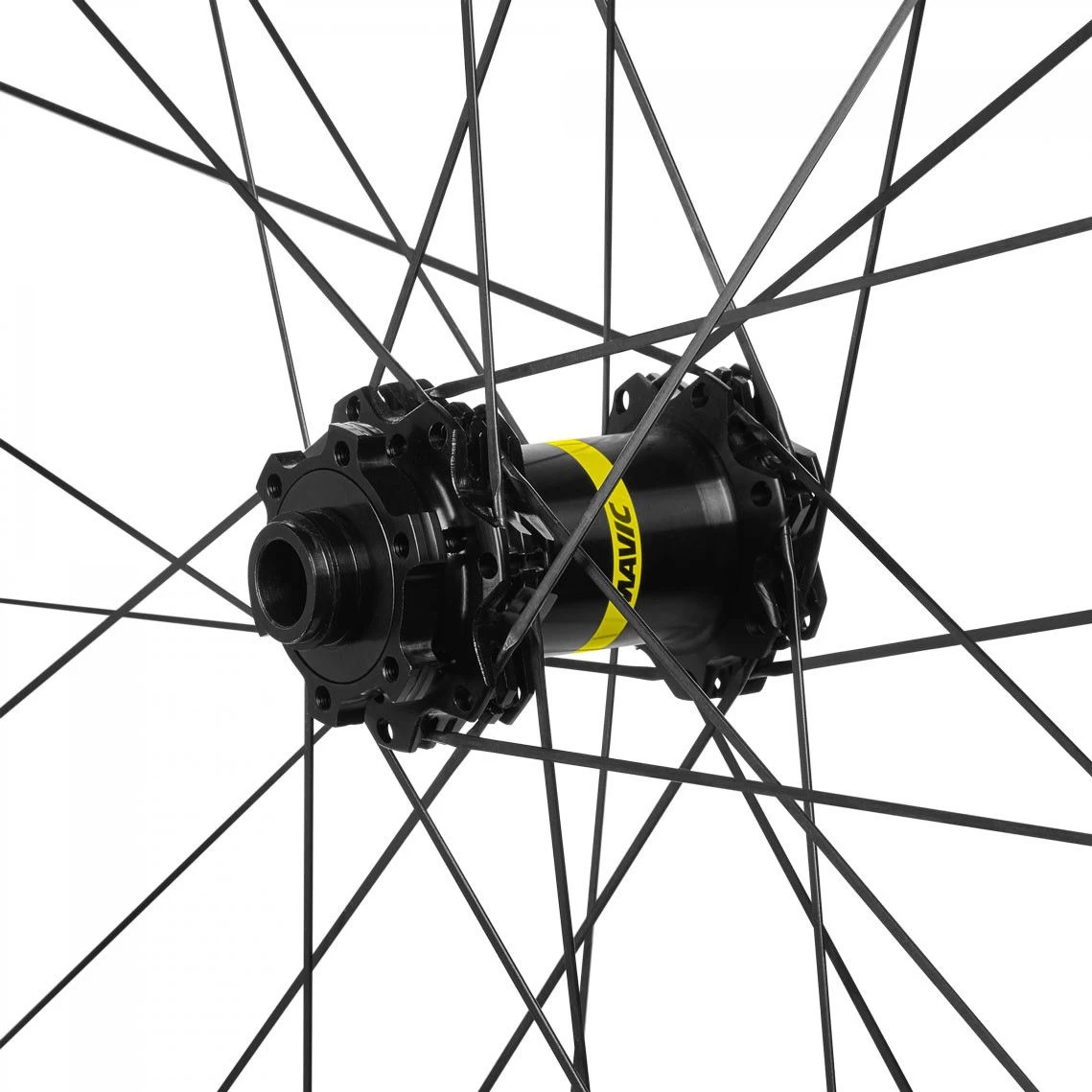

Hubs :

• Hubs for 6-hole brake discs.
• Axles: front 15 x 110 Boost; rear 12 x 148 Boost.

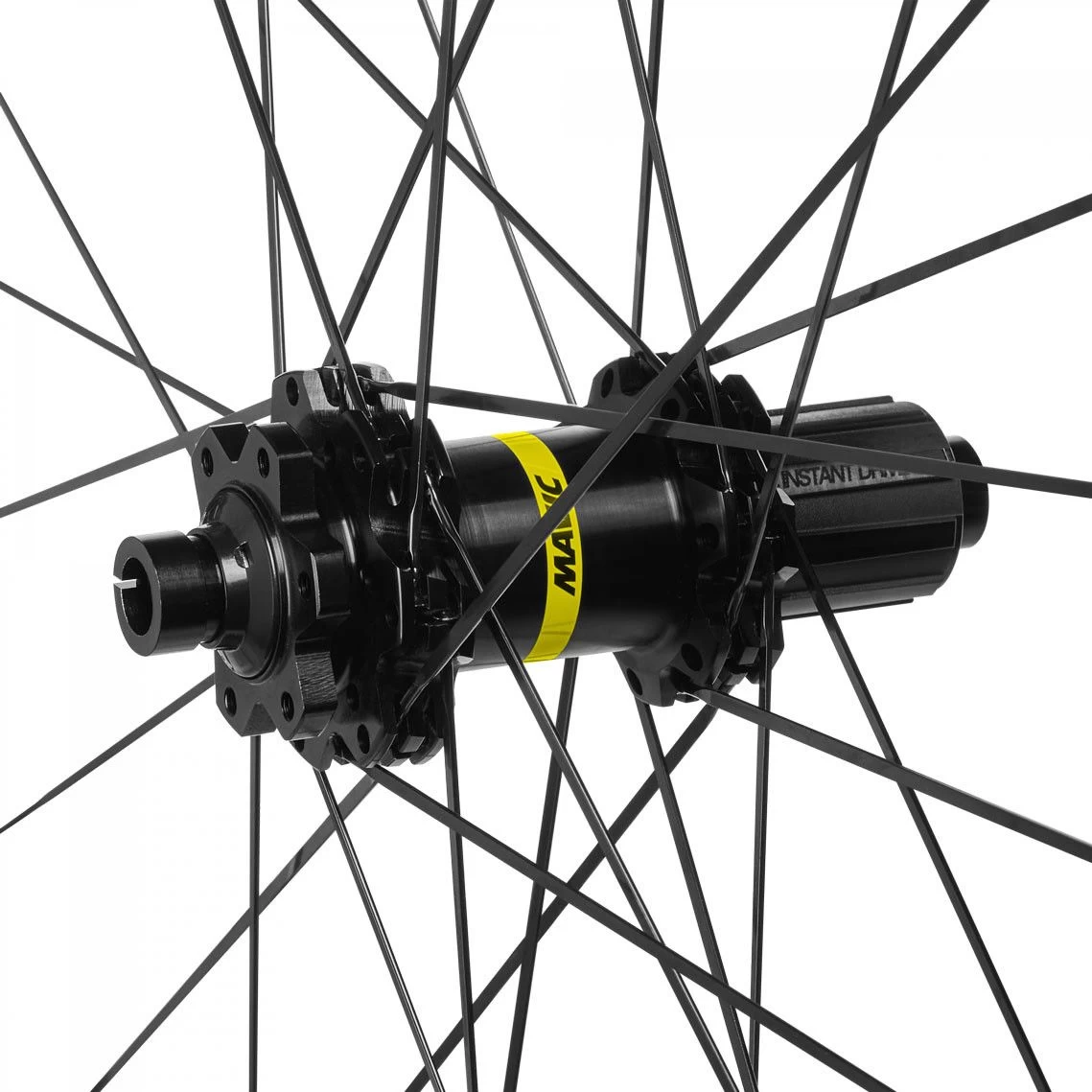

• Instant Drive 360 freewheel system.
• QRM Auto automatic bearing adjustment technology.

Delivered with :

• UST valve and accessories.
• Pre-installed tubeless rim tape.
• Spare spokes (2 for the front wheel and 4 for the rear wheel).

Technologies:

• Maxtal aluminum alloy : lightness and strength. A true Mavic exclusive, this specific aluminum alloy offers a better strength / weight ratio than the classic 6106 alloy.
• UST Tubeless technology : Universal Standard for Tubeless traction and control. Ready-to-drive tubeless system. The UST system improves traction, control and comfort while reducing inertia and the risk of punctures.
• Instant Drive 360 Freewheel System : The new Instant Drive 360 freewheel system is ultra light and efficient. An oversized non-contact rubber seal reduces friction to a minimum, and a wide choice of adapters makes it compatible with all types of frames and axles.
• Pinch Flat Protection rim wall (reduced risk of punctures and lacerations) : risk of punctures reduced by 20% with the PFP system. A specific innovation for electric bikes, which significantly reduces the risk of lacerations and punctures.
• QRM Auto Automatic Bearing Adjustment Technology : Mavic Auto Bearing Quality Our latest innovation. These cartridge bearings are obviously double sealed, with C3 internal clearance. Their preload is automatically adjusted to ensure, in the long term, a perfect rotation without any play.
